Suction (Wall) setup - CUH

Change suction liner

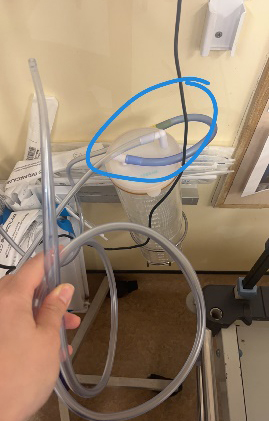

Disconnect blue tubing from yellow connector and remove suction liner from the canister, all disposed of in the yellow bin.

New suction

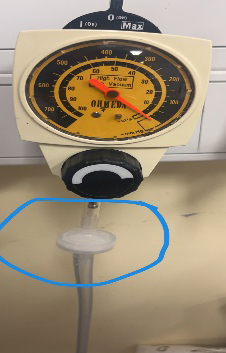

Step 1 — Ensure filter on wall under suction control.

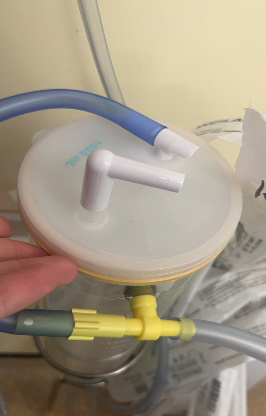

Step 2 — Tubing, suction liner (1500 mls), yankeur. Attatch white L piece to the suction liner.

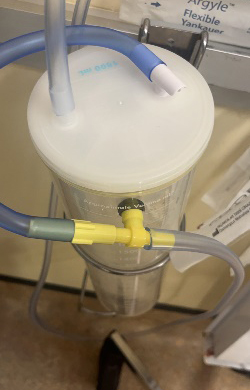

Step 3 — Place into the chamber. Click into the chamber with a good seal. Connect yellow to yellow.

Step 4 — Attach suction tubing to other end of white L piece. Check it is working and long enough line to reach patients head

Links

Content by Dr Íomhar O' Sullivan. Last review Dr ÍOS 25/03/24.
